Description

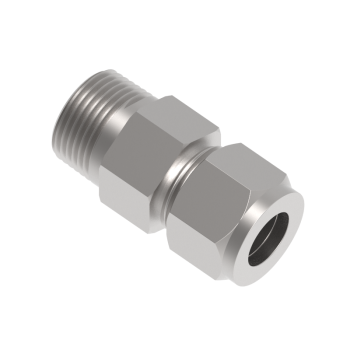

| Male BSPT Connector, Imperial (Inch) | ||
| Connection 1 (A) | Connection 2 (T) | |
| Ordering Information | Tube O.D. | Male Thread |
| inch | BSPT | |
| CMC-01-01R-SS | 1/16 | 1/16 |
| CMC-01-02R-SS | 1/16 | 1/8 |
| CMC-01-04R-SS | 1/16 | 1/4 |
| CMC-02-01R-SS | 1/8 | 1/16 |
| CMC-02-02R-SS | 1/8 | 1/8 |
| CMC-02-04R-SS | 1/8 | 1/4 |
| CMC-02-06R-SS | 1/8 | 3/8 |
| CMC-02-08R-SS | 1/8 | 1/2 |
| CMC-03-02R-SS | 3/16 | 1/8 |
| CMC-03-04R-SS | 3/16 | 1/4 |
| CMC-04-01R-SS | 1/4 | 1/16 |
| CMC-04-02R-SS | 1/4 | 1/8 |
| CMC-04-04R-SS | 1/4 | 1/4 |
| CMC-04-06R-SS | 1/4 | 3/8 |
| CMC-04-08R-SS | 1/4 | 1/2 |
| CMC-04-12R-SS | 1/4 | 3/4 |
| CMC-05-02R-SS | 5/16 | 1/8 |
| CMC-05-04R-SS | 5/16 | 1/4 |
| CMC-05-06R-SS | 5/16 | 3/8 |
| CMC-06-02R-SS | 3/8 | 1/8 |
| CMC-06-04R-SS | 3/8 | 1/4 |
| CMC-06-06R-SS | 3/8 | 3/8 |
| CMC-06-08R-SS | 3/8 | 1/2 |
| CMC-06-12R-SS | 3/8 | 3/4 |
| CMC-08-02R-SS | 1/2 | 1/8 |
| CMC-08-04R-SS | 1/2 | 1/4 |
| CMC-08-06R-SS | 1/2 | 3/8 |
| CMC-08-08R-SS | 1/2 | 1/2 |
| CMC-08-12R-SS | 1/2 | 3/4 |
| CMC-08-16R-SS | 1/2 | 1 |
| CMC-10-06R-SS | 5/8 | 3/8 |
| CMC-10-08R-SS | 5/8 | 1/2 |
| CMC-10-12R-SS | 5/8 | 3/4 |
| CMC-12-08R-SS | 3/4 | 1/2 |
| CMC-12-12R-SS | 3/4 | 3/4 |
| CMC-12-16R-SS | 3/4 | 1 |
| CMC-14-12R-SS | 7/8 | 3/4 |
| CMC-14-16R-SS | 7/8 | 1 |
| CMC-16-08R-SS | 1 | 1/2 |
| CMC-16-12R-SS | 1 | 3/4 |
| CMC-16-16R-SS | 1 | 1 |
| CMC-20-16-SS | 1.1/4 | 1 |
| CMC-20-20R-SS | 1.1/4 | 1.1/4 |
| CMC-24-24R-SS | 1.1/2 | 1.1/2 |
| CMC-32-32R-SS | 2 | 2 |
