Description

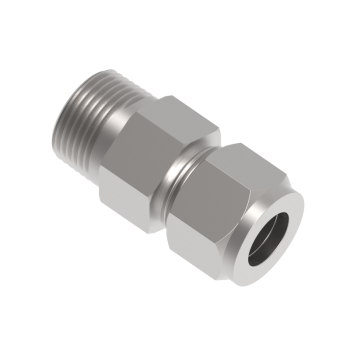

| Male BSPT Connector , Metric/Imperial | ||
| Connection 1 (A) | Connection 2 (T) | |
| Ordering Information | Tube O.D. | Male Thread |
| mm | BSPT | |
| CMC-02M-02R-SS | 2 | 1/8 |
| CMC-03M-02R-SS | 3 | 1/8 |
| CMC-03M-04R-SS | 3 | 1/4 |
| CMC-04M-02R-SS | 4 | 1/8 |
| CMC-04M-04R-SS | 4 | 1/4 |
| CMC-06M-02R-SS | 6 | 1/8 |
| CMC-06M-04R-SS | 6 | 1/4 |
| CMC-06M-06R-SS | 6 | 3/8 |
| CMC-06M-08R-SS | 6 | 1/2 |
| CMC-08M-02R-SS | 8 | 1/8 |
| CMC-08M-04R-SS | 8 | 1/4 |
| CMC-08M-06R-SS | 8 | 3/8 |
| CMC-08M-08R-SS | 8 | 1/2 |
| CMC-10M-02R-SS | 10 | 1/8 |
| CMC-10M-04R-SS | 10 | 1/4 |
| CMC-10M-06R-SS | 10 | 3/8 |
| CMC-10M-08R-SS | 10 | 1/2 |
| CMC-12M-04R-SS | 12 | 1/4 |
| CMC-12M-06R-SS | 12 | 3/8 |
| CMC-12M-08R-SS | 12 | 1/2 |
| CMC-12M-12R-SS | 12 | 3/4 |
| CMC-15M-08R-SS | 15 | 1/2 |
| CMC-16M-04R-SS | 16 | 1/4 |
| CMC-16M-06R-SS | 16 | 3/8 |
| CMC-16M-08R-SS | 16 | 1/2 |
| CMC-16M-12R-SS | 16 | 3/4 |
| CMC-18M-08R-SS | 18 | 1/2 |
| CMC-18M-12R-SS | 18 | 3/4 |
| CMC-20M-08R-SS | 20 | 1/2 |
| CMC-20M-12R-SS | 20 | 3/4 |
| CMC-22M-12R-SS | 22 | 3/4 |
| CMC-22M-16R-SS | 22 | 1 |
| CMC-25M-12R-SS | 25 | 3/4 |
| CMC-25M-16R-SS | 25 | 1 |
| CMC-28M-16R-SS | 28 | 1 |
| CMC-28M-20R-SS | 28 | 1.1/4 |
| CMC-32M-20R-SS | 32 | 1.1/4 |
| CMC-32M-24R-SS | 32 | 1.1/2 |
