Description

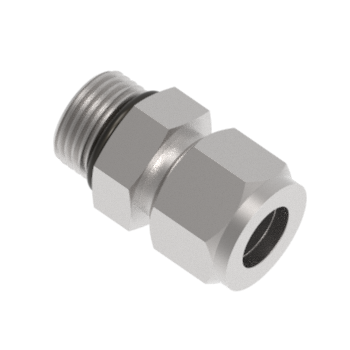

| SAE/MS Male Connector |
|
Connection 1 |
Connection 2 |
| Ordering Information |
Tube O.D. |
Straight Thread |
| inch |
SAE/MS |
| CSC-02-02U-SS |
1/8 |
5/16-24 |
| CSC-02-04U-SS |
1/8 |
7/16-20 |
| CSC-04-04U-SS |
1/4 |
7/16-20 |
| CSC-04-06U-SS |
1/4 |
9/16-18 |
| CSC-04-08U-SS |
1/4 |
3/4-16 |
| CSC-04-10U-SS |
1/4 |
7/8-14 |
| CSC-05-05U-SS |
5/16 |
1/2-20 |
| CSC-06-04U-SS |
3/8 |
7/16-20 |
| CSC-06-06U-SS |
3/8 |
9/16-18 |
| CSC-06-08U-SS |
3/8 |
3/4-16 |
| CSC-06-10U-SS |
3/8 |
7/8-14 |
| CSC-08-06U-SS |
1/2 |
9/16-18 |
| CSC-08-08U-SS |
1/2 |
3/4-16 |
| CSC-08-10U-SS |
1/2 |
7/8-14 |
| CSC-08-12U-SS |
1/2 |
1-1/16-12 |
| CSC-10-08U-SS |
5/8 |
3/4-16 |
| CSC-10-10U-SS |
5/8 |
7/8-14 |
| CSC-12-08U-SS |
3/4 |
3/4-16 |
| CSC-12-12U-SS |
3/4 |
1-1/16-12 |
| CSC-14-14U-SS |
7/8 |
1-3/16-12 |
| CSC-16-12U-SS |
1 |
1-1/16-12 |
| CSC-16-16U-SS |
1 |
1-5/16-12 |
| CSC-20-20U-SS |
1-1/4 |
1-5/8-12 |
| CSC-24-24U-SS |
1-1/2 |
1-7/8-12 |
| CSC-32-32U-SS |
2 |
2-1/2-12 |
