Description

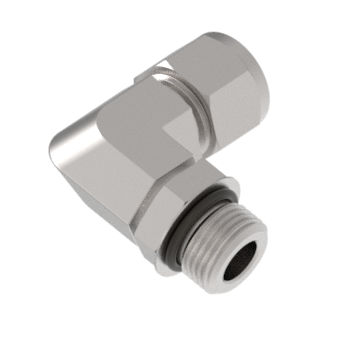

| Positionable Male Elbow Imperial (Inch) | ||
| Connection 1 | Connection 2 | |
| Ordering Information | Tube O.D. | Straight Thread |
| inch | SAE/MS | |
| CSLA-04-04U-SS | 1/4 | 7/16-20 |
| CSLA-04-06U-SS | 1/4 | 9/16-18 |
| CSLA-05-05U-SS | 5/16 | 1/2-20 |
| CSLA-06-06U-SS | 3/8 | 9/16-18 |
| CSLA-06-08U-SS | 3/8 | 3/4-16 |
| CSLA-08-08U-SS | 1/2 | 3/4-16 |
| CSLA-10-10U-SS | 5/8 | 7/8-14 |
| CSLA-12-12U-SS | 3/4 | 1-1/16-12 |
| CSLA-14-14U-SS | 7/8 | 1-3/16-12 |
| CSLA-16-16U-SS | 1 | 1-5/16-12 |
| CSLA-20-20U-SS | 1-1/4 | 1-5/8-12 |
| CSLA-24-24U-SS | 1-1/2 | 1-7/8-12 |
| CSLA-32-32U-SS | 2 | 2-1/2-12 |
| Positionable Male Elbow Metric (mm) | ||
| Connection 1 | Connection 2 | |
| Ordering Information | Tube O.D. | Straight Thread |
| mm | SAE/MS | |
| CSLA-06M-02G-SS | 6 | 1/8 |
| CSLA-06M-04G-SS | 6 | 1/4 |
| CSLA-08M-02G-SS | 8 | 1/8 |
| CSLA-08M-04G-SS | 8 | 1/4 |
| CSLA-10M-04G-SS | 10 | 1/4 |
| CSLA-10M-06G-SS | 10 | 3/8 |
| CSLA-12M-04G-SS | 12 | 1/4 |
| CSLA-12M-06G-SS | 12 | 3/8 |
| CSLA-12M-08G-SS | 12 | 1/2 |
| CSLA-12M-12G-SS | 12 | 3/4 |
