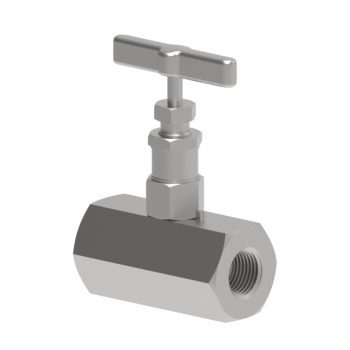

SVH1 Series High Pressure Bar Stock Needle Valves for 10000psig – Straight Pattern

Description

Applications

• Instrument Isolation
• Gas, Vapor or Liquid

Features

• In-Line pattern
• Stainless Steel, Alloy 400(Monel), Duplex
• PTFE packing provides leak tight seal and long life cycle
• Metal-to-Metal Seat or PCTFE Soft Seat(Bubble Tight)

Specifications

• Maximum Operating Pressure : 10000 psig(700 barg) @ 100℉(38℃)
• Operating Temperature Range : -65℉(-54℃) to 450℉(233℃)
